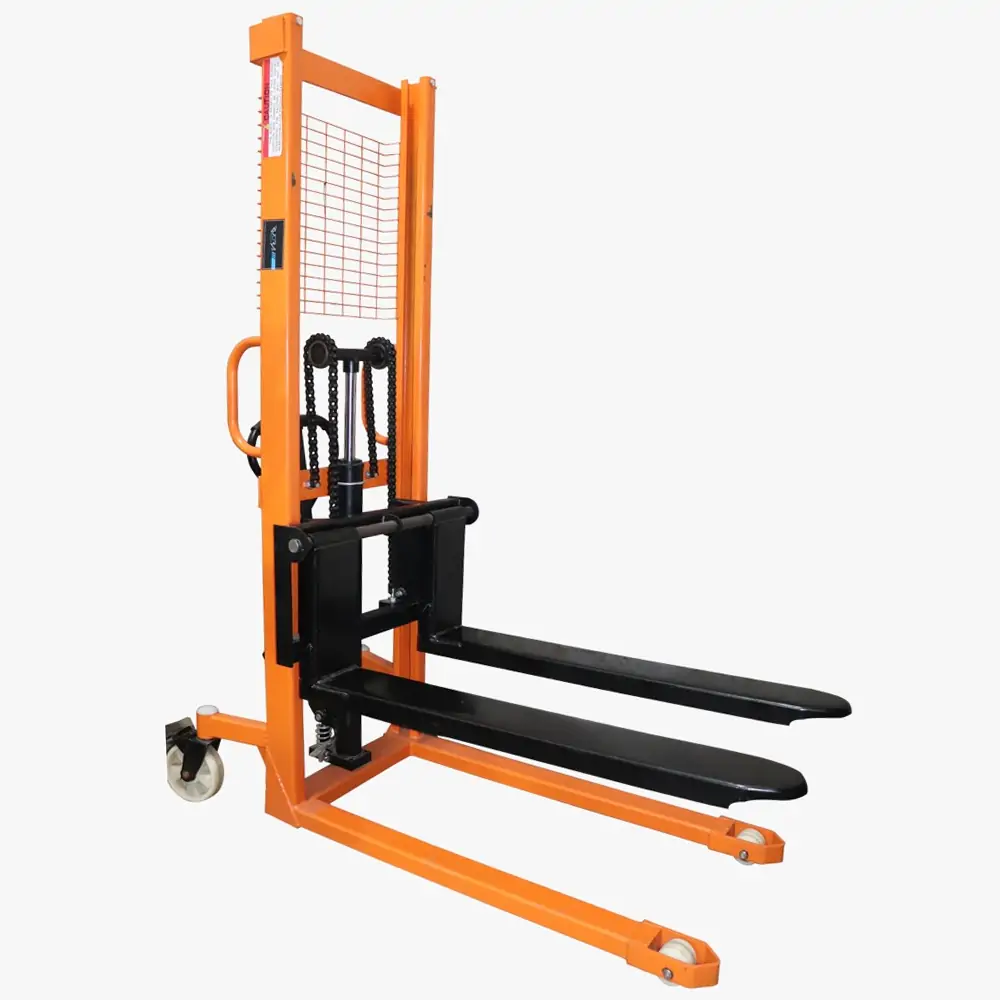

Manual Hydraulic Stacker (Indian Make)
Manual Hydraulic Stacker (Indian Make)
Capacity & Lift Height: Standard capacity of 500 kg with a lifting height of 1.6 meters. Flexible Lifting Range: Available with Mono and Telescopic masts starting from 1.6 meters, suitable for various material handling needs. Customizable Forks: Options for special fork length and width to match specific application requirements. Robust Construction: Built with a strong and durable frame, ensuring long service life in demanding environments. Efficient Pump Assembly: Features a neutral position for controlled load handling and smooth lifting operations. Premium Hydraulic Components: Equipped with hard chrome–plated pistons and cylinders for durability and corrosion resistance. Leak-Proof Design: Uses double-sealed, high-pressure polyurethane seals to prevent hydraulic leakage. Best-in-Class Warranty: Comes with an industry-leading 1-year warranty. Lifting Speed: Provides efficient lifting at 14 mm per stroke. Ideal for Short Transport: Perfect for applications where lifting is the primary need and travel distance is minimal, such as distribution centres, logistics hubs, and industrial units. Product Code RE-108 Rated Capacity Kg 500 Load Center mm 600 Max. Fork Height mm 1600 Fork Length mm 900 Fork Width mm 600 Turning Radius mm 1500 Wheelbase mm 1100 Front Wheel Distance mm Overall Length mm 1500 Overall Width mm 400 – 865 Overall Height mm 2100 Self-Weight kg 145 Kg Aprox
